APSO RT771- Seven-Door Controller

The RT 771 controller will handle seven individual doors. With the option of network or wireless connectivity, the RT771 is one of the most efficient controllers on the market. Each unit is equipped with a fully supervised power circuit that monitors input, output, door status, and overall controller health.

Communication Options

Ethernet
Wi-Fi 2.4 GHz

Reader Compatibility

26 bit Wiegand

Enclosure

Dimensions (mm): 300x230x40
Metal lockable security can

Enivronmental

Temperature: -20º ~ +60º C
Humidity: 0 - 95% relative humidity-non condensing

Manufacturer’s Limited Warranty

One year limited warranty against defects in materials and workmanship

Installtion

Easy installation via RS-485 wiring, compatible with legacy Wiegand wiring to the APSO RT 771

Power Requirements

12V DC 5A Input
12VDC 7.5A *Optional Battery-Back up
Powers readers and other door hardware
directly from the bus
*Power supply and battery not included

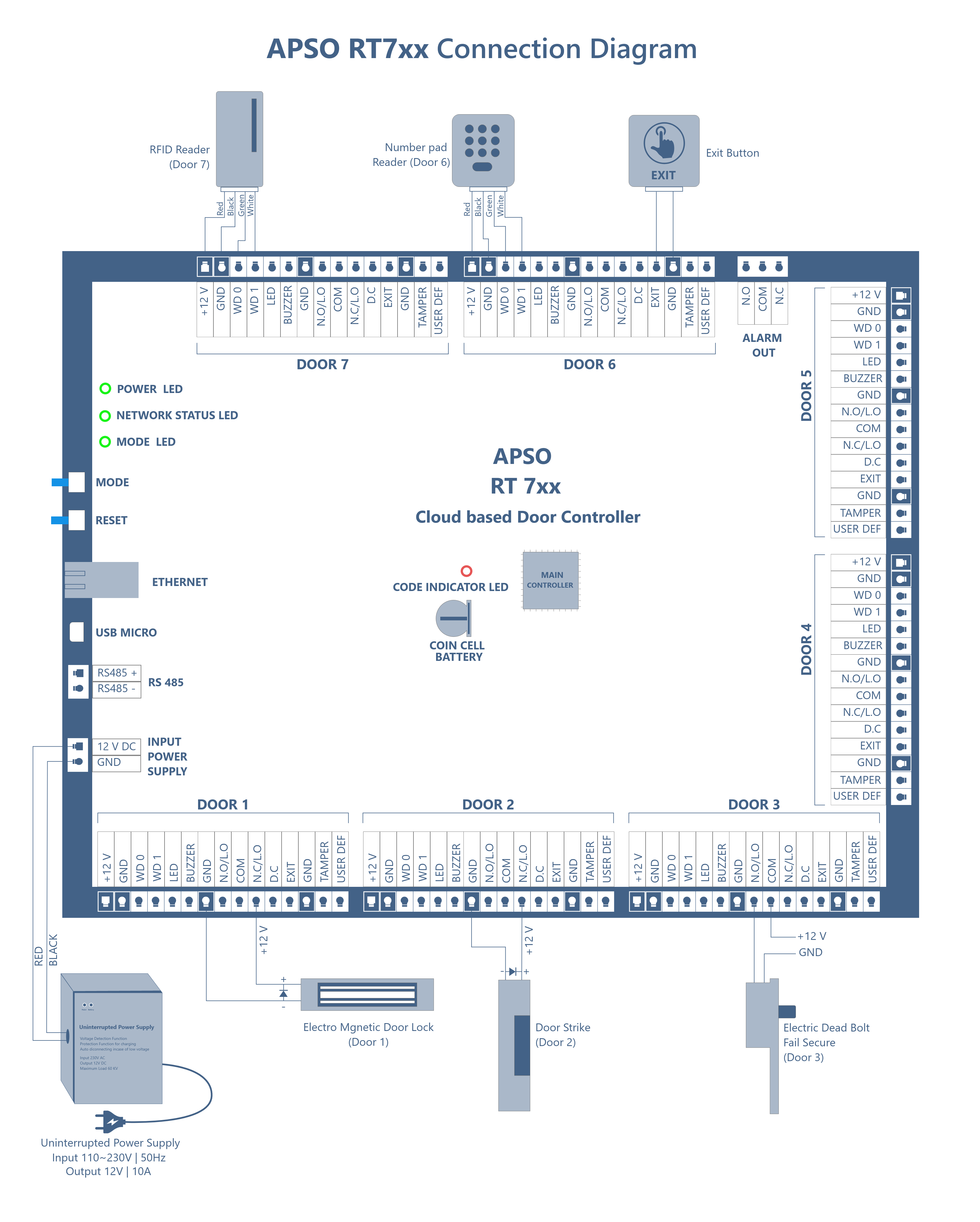

Connections

Removable Screw-down Terminals
Power Supply Input
Industrial-grade 5A Form-C Relays (7)
Reader Input (7)
Door Position Sensor *NO&NC (7)
Request To Exit (7)
Alarm Output (1)
